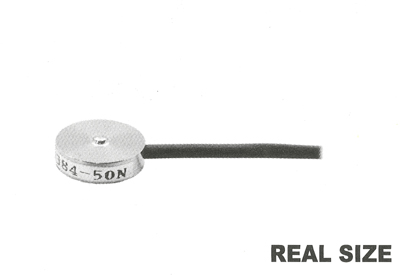

ʼ ε弿     MCSR

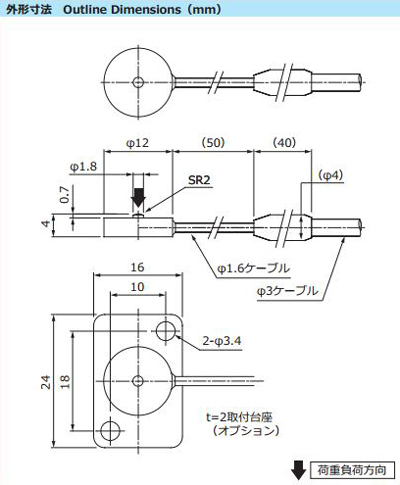

    12mm  × 4mm       뷮  0~0.5kg, 0~1kg, 0~2kg, 0~5kg

ͽƮ

SPECIFICATION



               MCSR

 ȣĪ

    0.5L

      1L

      2L

       5L

 ݿ뷮  (R.C)

Newton

        0-5N

    0-10N

      0-20N

      0-50N

kgf

     0-0.51kg

  0-1.02kg

   0-2.04kg

     0-5.1kg

  (R.O)

               1.0 mV/V ± 30%

  Balance

           ± 10% R.O.

 ,Non-linearity

           ± 1% R.O.

 ׸ý,Hysteresis

           ± 1% R.O.

 ݺ, Repeatability

           ± 1% R.O.

  µ

           ±0.2% R.O. /1

  µ

           ±0.1% Load /1

 µ

              +0  ~ +50

  µ

             -10  ~ +60



               150% R.C.

 ΰ, õ

               2.5VDC

 ΰ, ִ

               5VDC

 Է´ڰ

              350 Ohm ± 10 Ohm

 ´ڰ

              350 Ohm ± 10 Ohm



             1000 Mega Ohm ̻

 ̺

             1

 ̺

3mm PVC Jacket, 4 C, ̺

 ̺

(+Է), (-Է), (+), (-)

 ü

 θ  ƿ

 ǰ߷ (Loadcell only)

              0.8g

              3g


Ư ¡

Ʈ ʼ
 ѵ ʼ


߽ġ
, μ
